3P Durable Prawn Grading Machine , Anti Erosion Shrimp Sorting Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Word | Smart Shrimp Grading Machine Fresh Shrimp Drum Sorting Machine Vannamei Sorter | Dimension(L*W*H) | L6000xW4000xH2200mm |
|---|---|---|---|
| Production Capacity | 800kg-1000kg | Weight | 1200 KG |
| Power | 4.9KW | Material | Stainless Steel 304 |
| MOQ | 1 Set | Number Of Rollers | 8, 12, 18 |
| Core Components | Bearing, Gearbox, Motor, Gear | Warranty | 1 Year |
| Highlight | 3P Prawn Grading Machine,Durable Prawn Grading Machine,Anti Erosion Shrimp Sorting Equipment |
||
Product Description
Smart Shrimp Grading Machine Fresh Shrimp Drum Sorting Machine Vannamei Sorter

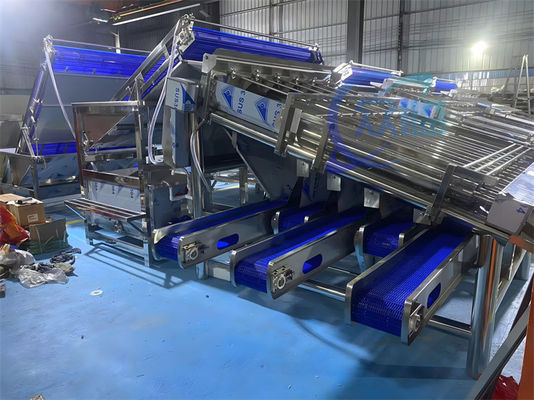

The machine consists of three parts: one-stage conveying, two-stage conveying and grading drum set. The grading drum set is composed of at least two upper and lower rollers, and the gap between the two rollers can be automatically completed. The production process is greatly improved by the entire production process from the delivery to the sorting of the shrimp. This machine adopts numerical control to adjust the shrimp specifications, and the accuracy reaches the industry standard. It is the ideal processing equipment for the aquatic product processing industry. Suitable for: different types of shrimp, headed shrimp, shrimp, etc. Conveyor belt size: 1746mm wide plastic mesh belt, 10mm high baffle, two-stage hoist Classification cylinder: 12 pieces of Φ125×130mm super-sliding plastic drum; Conveyor belt material: high-strength polyvinyl chloride plastic belt Power: Imported into 1.5KW × 1 set, 0.4KW × 2 sets, Starlight 0.75KW × 2 sets, stainless steel pure water pump 1.1KW × 1 set, Japan MITSUBISHI inverter Lifting groove material: SUS 1.5mm 304# stainless steel plate. Body frame: Φ114×2.5mm 304# stainless steel tube Water supply part: stainless steel fittings on the cover, stainless steel pump PPR fittings Rotating part:
Product Paramenters
The overall material is made of 304 stainless steel, and all parts or materials meet the requirements of hygienic production;
Compared with traditional processing methods, it saves a lot of labor, eliminates secondary pollution, greatly improves production efficiency, and is suitable for processing large quantities of shrimp
