Shrimp Grading Machine

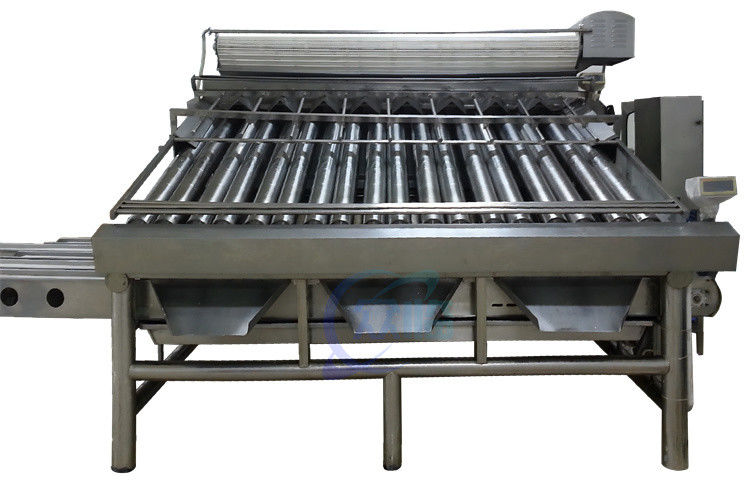

Practical Roller Fish Grader Machine , Multi Function Shrimp Sorter

All Category

Fish Processing Machine

Mr. Jack Lin

jack@zolimmachinery.com

+8618823255551

+8618823255551

Contact Now

Practical Roller Fish Grader Machine , Multi Function Shrimp Sorter

Brand Name:	zolim
Model Number:	ZL-FX18
MOQ:	1unit
Price:	Negotiable
Packaging Details:	wooden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE-ISO

Keyword:

Roller Smart Vannamei Grader Vannamei Sizer Vannamei Sorter Vannamei Sizing Line

Dimension(L*W*H):

L6000xW5200xH2200mm

Power:

4.9KW

Material::

Stainless Steel 304

Production Capacity:

1500kg-1800kg

Weight:

1500 KG

Sizing Method:

By Rollers

Delivery:

20-30 Days

Supply Ability:

100pcs/mon

Highlight:

Practical Fish Grader Machine

Roller Fish Grader Machine

Multi Function Shrimp Sorter

Product Description

Roller Smart Vannamei Grader Vannamei Sizer Vannamei Sorter Vannamei Sizing Line

Main Usage:

The machine is suitable for grading all type of shrimps, Balaam fishes, and other small fish, now it is mainly applied to classify and process large amount shrimp.

Main Character:

Put the raw materials into the first grading tank to convey and process automatically work is fast , accurate and uniform to classify There is no breakage to the products Save energy cost and has high working efficiency

Working Principle

This equipment mainly consists of a driving device, a transmission drum, a conveyer belt, a groove type upper supporting roller, a lower supporting roller, a rack, a sweeper, a tension device, a turnabout drum, a guide chute, an electric control device, etc.

The conveyer belt winds about the transmission drum and the turnabout drum in the tail part to form an annular sealing belt. The conveyer belt winds about the transmission drum and the turnabout drum in the tail part to form an annular sealing belt. The tension device enables the conveyer belt to have sufficient tensile force. During working, the transmission drum is driven by a speed reducer to drive the conveyer belt through a tooth profile, thus the materials enter from a feeding device to move along with the conveyer belt, and they reach the discharge port via a certain distance to shift to the next process

The overall material is made of 304 stainless steel, and all parts or materials meet the requirements of hygienic production;

Compared with traditional processing methods, it saves a lot of labor, eliminates secondary pollution, greatly improves production efficiency, and is suitable for processing large quantities of shrimp

Model:	ZL-FX18
Name	Vannamei Sizing Machine
Machine dimensions:	L6000xW5200xH2200mm
Power supply type:	380v/3P/50Hz
Capacity:	1500-1800KG/H
Power:	4.9KW
Weight:	1500KG
