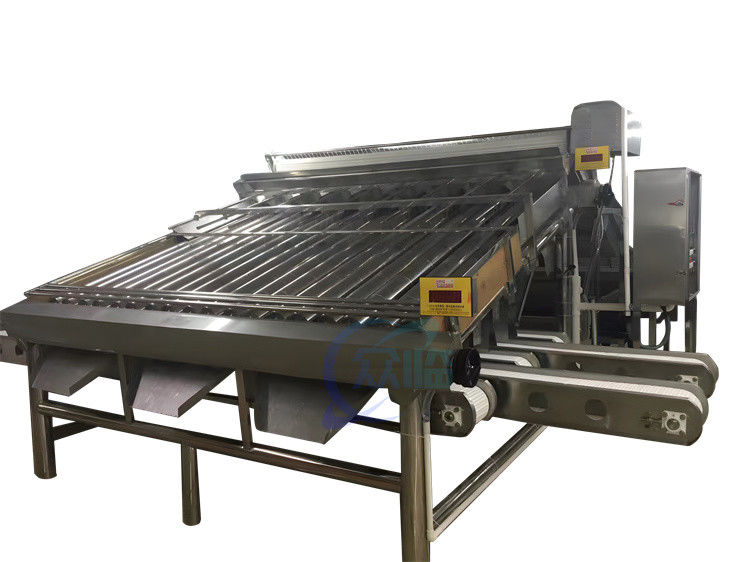

Durable 4.9KW Shrimp Grading Machine Automatic For Prawn Sizing

Brand Name:	zolim
Model Number:	ZL-FX18
MOQ:	1unit
Price:	Negotiable
Packaging Details:	wooden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE-ISO

Keyword:

Headless Vannamei Grader Shrimp Sorter Prawn Automatic Sizing Machine

Condition::

Automatic

Dimension(L*W*H):

L6000xW5204xH2200mm

Power:

4.9KW

Production Capacity:

1500kg-1800kg

Weight:

1500 KG

Material:

Stainless Steel 304

Core Components:

Rollers, Motor, Water Pump, Inverter

Supply Ability:

100pcs/mon

Highlight:

Durable Shrimp Grading Machine

Shrimp Grading Machine Automatic

4.9KW Prawn Automatic Sizing Machine

Product Description

Headless Vannamei Grader Shrimp Sorter Prawn Automatic Sizing Machine

Working Principle

Vannamei grader mainly consists of a driving device, a transmission drum, a conveyer belt, a groove type upper supporting roller, a lower supporting roller, a rack, a sweeper, a tension device, a turnabout drum, a guide chute, an electric control device, etc.

The conveyer belt winds about the transmission drum and the turnabout drum in the tail part to form an annular sealing belt. The conveyer belt winds about the transmission drum and the turnabout drum in the tail part to form an annular sealing belt. The tension device enables the conveyer belt to have sufficient tensile force. During working, the transmission drum is driven by a speed reducer to drive the conveyer belt through a tooth profile, thus the materials enter from a feeding device to move along with the conveyer belt, and they reach the discharge port via a certain distance to shift to the next process

The overall material is made of 304 stainless steel, and all parts or materials meet the requirements of hygienic production;

Compared with traditional processing methods, it saves a lot of labor, eliminates secondary pollution, greatly improves production efficiency, and is suitable for processing large quantities of shrimp

Model:	ZL-FX18
Name	Vannamei Grader
Machine dimensions:	L6000xW5200xH2200mm
Power supply type:	380v/3P/50Hz
Capacity:	1500-1800KG/H
Power:	4.9KW
Weight:	1500KG
